Gold Wash Plants
Specifications
| Capacity | 100 Tons Per Hour |
|---|---|
| Sluice Length | ~30' |
| Water Flow | 1,200 GPM |
| Recovery Rate | 95-98% (down to 200 mesh) |
| Rock Capacity | Up to 18 inches |
| Setup Time | ~30 minutes |
| Power | Diesel or electric options |
| Build Time | 1-3 weeks |
| Origin | Made in USA |
Mid-Range
100 Ton Gold Wash Plant for Sale
Custom-built in the USA. 100 tons per hour capacity, ~30' sluice, 1,200 GPM water flow. 95-98% gold recovery rate. Mercury-free. Ships worldwide.
Mid-Range Wash Plant
The 100 Ton Gold Wash Plant offers solid mid-range capacity for growing operations. With ~30' of sluice and 1,200 GPM water flow, it's a strong choice for miners scaling up their placer mining operations.
Why Miners Choose the 100 Ton
- Processes 100 tons of material per hour — enough for most commercial placer operations
- ~30' sluice maximizes gold capture, including fine gold down to 200 mesh
- Still portable enough to move between claims with standard equipment
- Proven in Alaska, California, Africa, and Australia
Ideal Applications
The 100-ton unit excels in medium-scale placer mining, creek and river operations, and commercial mining ventures. It pairs perfectly with a mid-size excavator and can be fed continuously throughout the mining day. See how we compare to competitors.
In the Field

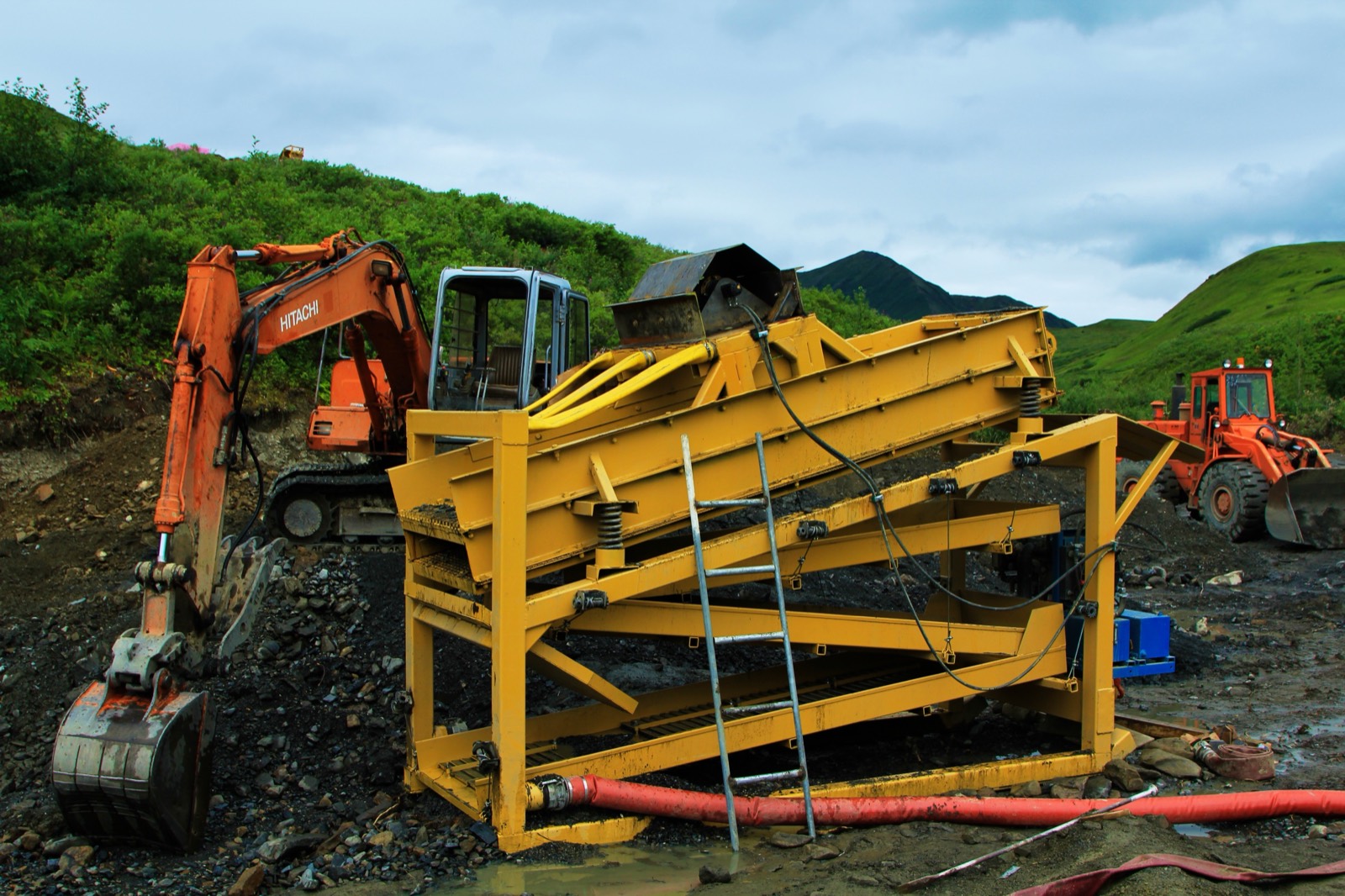

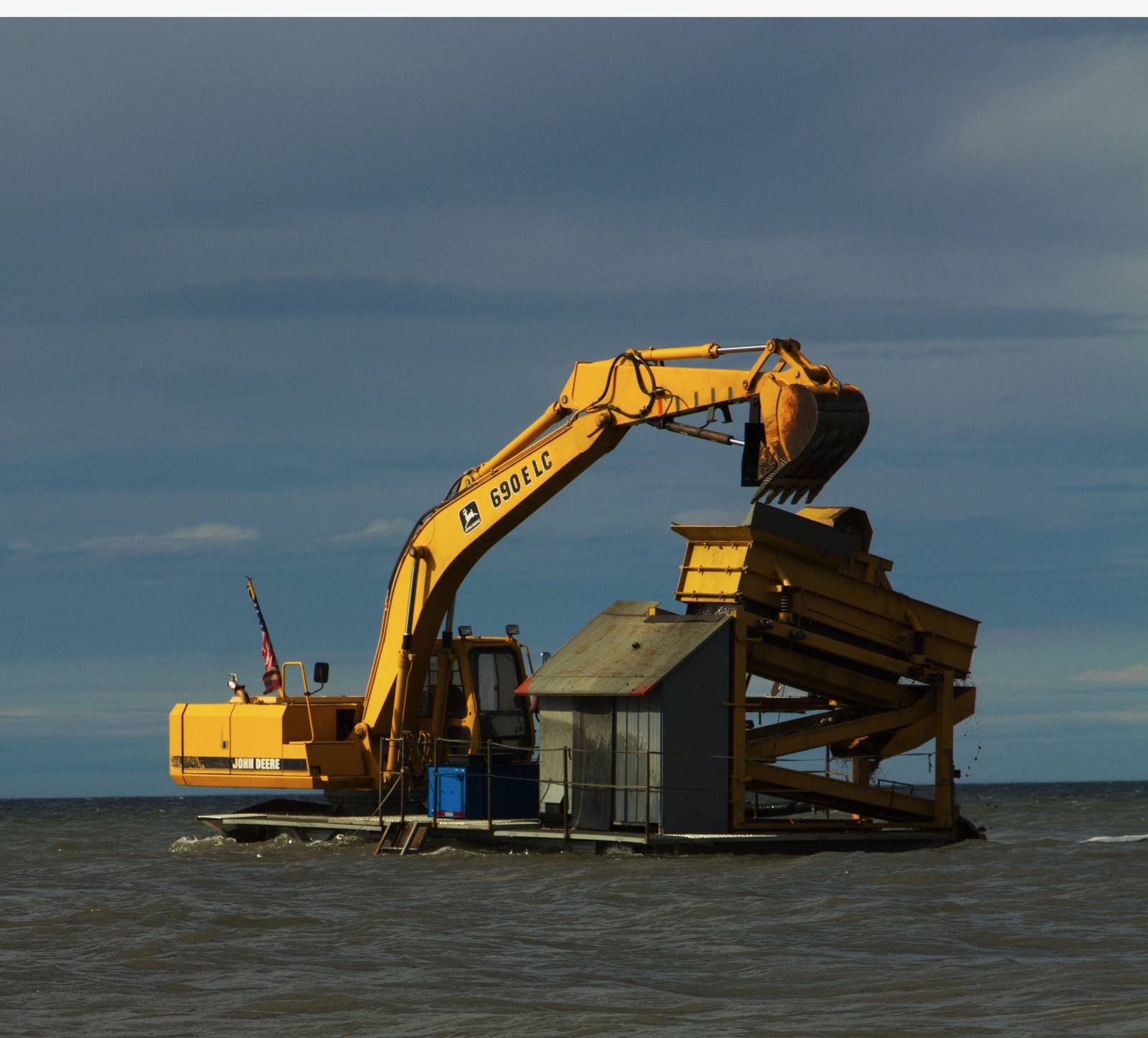

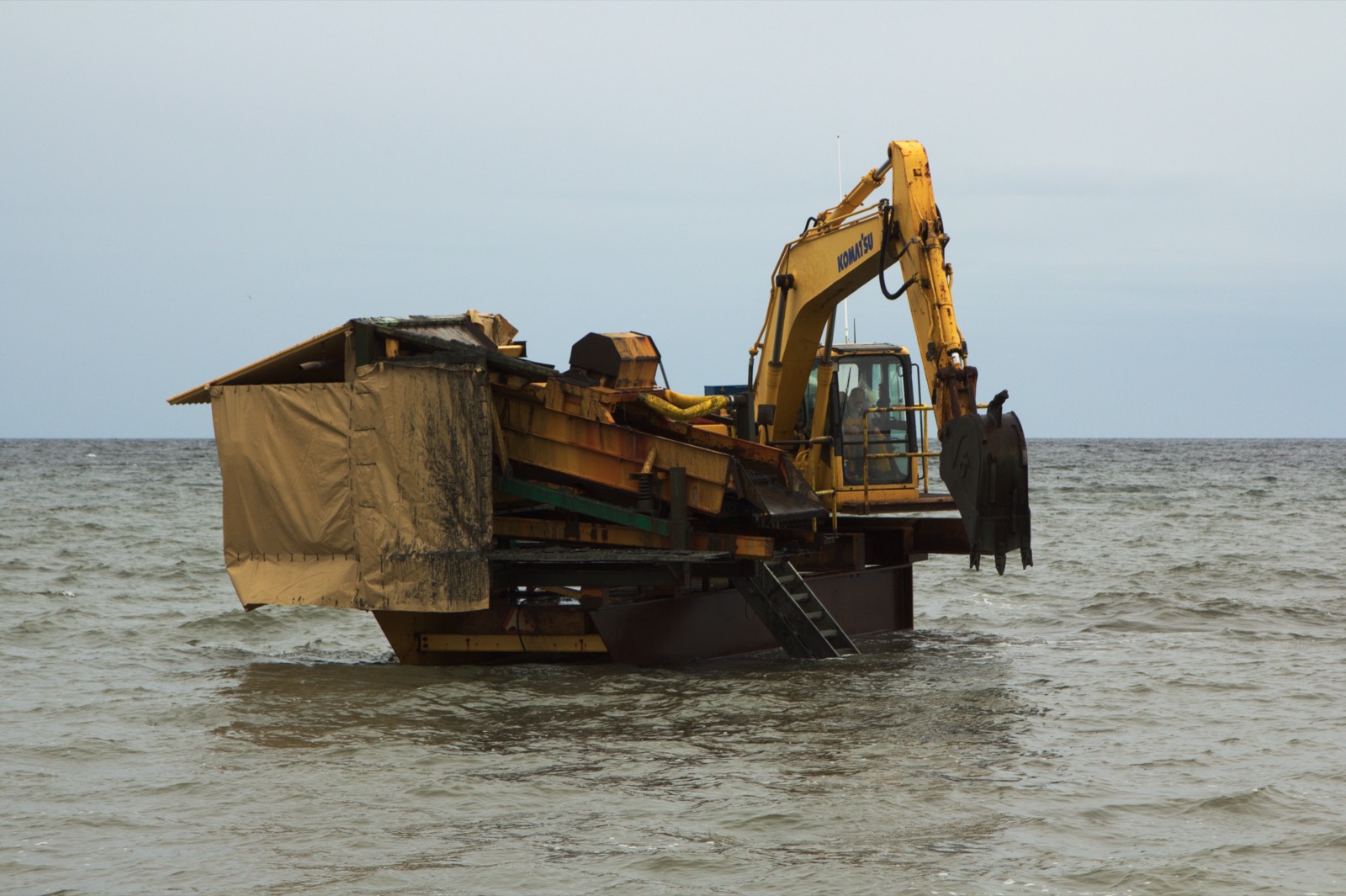

M100 Plants at Work
100 Ton Wash Plant — Common Questions
How much does a 100 ton gold wash plant cost?
Every 100 Ton plant is custom-built to the ground it will run on, so we quote each one rather than publish a single list price. Build time is one to three weeks. What moves the number most is the power package, the feed setup and where it ships to. Our gold wash plant cost guide walks through each of those, and a quote request comes back with a firm figure.
How much water does the 100 Ton need?
The 100 Ton runs at 1,200 GPM. That is the flow through the plant, not the volume you have to haul — most operations recirculate off a settling pond, so a single water source keeps the plant producing for days. Sizing the pond and pump to your ground is part of the quote.
What powers a 100 ton wash plant?
Diesel or electric, configured with the plant. Diesel is the usual choice on remote claims with no line power. Electric makes sense where you already have a generator set or grid supply on site.
What size rock can the 100 Ton take?
The 100 Ton handles feed up to 18 inches. Oversize is screened and rejected rather than jamming the plant, which is what keeps a plant running a full shift instead of stopping to clear a blockage. How you feed it matters here too.
How fine a gold will the 100 Ton hold?
The ~30 feet sluice recovers 95-98% down to 200 mesh. Recovery of very fine and flour gold depends as much on how the material is fed and how the sluice is run as it does on the plant itself.
Can the 100 Ton ship outside the United States?
Yes. We build in the USA and ship worldwide, and more than half of our enquiries come from outside the country. Containerisation, documentation and duty are worth planning before you order, not after.
Not sure this is the right size? Compare it against the 200 Ton plant, or read our guide to choosing the right size wash plant for your ground.
More Equipment
Explore Our Full Lineup
50 Ton Wash Plant
Entry-level. Perfect for small operations and prospecting.
100 Ton Wash Plant
Versatile workhorse. Ideal balance of production and portability.
200 Ton Wash Plant
High volume for commercial placer mining operations.
300 Ton Wash Plant
Maximum production. Industrial-scale gold recovery.
Ready to Get Started?
Get a free custom quote. Tell us about your operation and we'll recommend the perfect setup.
